SERVOPRO DF-550E NanoTrace
Product code: SERVOPRO DF-550E NanoTrace
Product Description:
Product details:

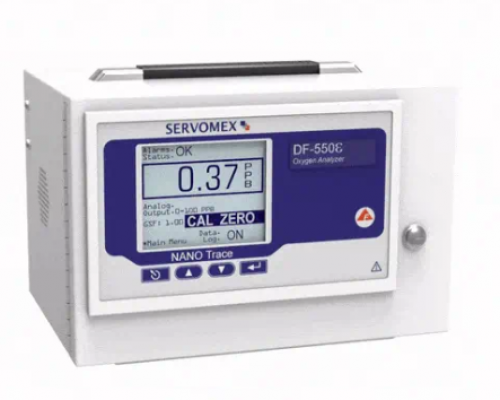

SERVOPRO DF-550E NanoTrace
The DF-550E NanoTrace is designed for ultra-trace semiconductor UHP gas analysis
An ultra-trace Coulometric oxygen analyzer, the DF-550E is optimized for quality measurements in ultra-high-purity electronic gases.
- High stability coulometric trace and percent measurements
- A no-compromise solution
- Simple maintenance and reduced ongoing costs
The DF-550E is designed to deliver ultra-trace measurements of oxygen (O2) as a contaminant in ultra-high purity electronic gases. With the highly sensitive 200 parts-per-trillion (ppt) Lower Detection Limit (LDL) delivering superior analytical headroom, the DF-550E’s fast response provides sensitive and dependable process monitoring.
Suitable for use with multiple background gases, the DF-550E is unaffected by sample and flow rate changes, making it ideal for upset prone conditions. Portability is optimized via a hand carry portable option and compact calibration system which can be integrated into the rear of the unit.
High stability coulometric trace and percent measurements
When you work in quality control of ultra-trace O2 contaminants, or carry out leak detection, you need an analyzer that can deliver both high performance, stable measurements and flexible use and configuration. You need analysis that is both stable, responsible and ultra-sensitive; it needs to deliver consistent results – untroubled by changing sample and flow rate conditions – and be able to overcome upset conditions quickly and efficiently. Flexibility is key: the ability to measure O2 in multiple background gases is essential to cover application requirements, while easy portability enables measurements across the whole of the process. Whatever your application needs, you’ll want an analyzer that can reduce your ongoing costs and provide operational efficiencies. We don’t believe you should have to compromise.
A no-compromise solution
The DF-550E is designed to deliver premium performance ultra-trace oxygen measurement in a range of background gases. Compact, reliable and highly accurate, the DF-550E series uses unique, non-depleting E-sensor technology to make exceptional low trace and ultra-trace ppt O2 measurements with minimal sensor drifting, no false low readings or frequent and costly calibration requirements. The result is an analyzer that has become the de facto industry standard for the reliable measurement of oxygen in semiconductor manufacture. In addition, the NanoTrace can be configured in various ways including initiation via front panel or digital interconnect. While a number of hand carry choices and an optional manual calibration facility – rear-mounted to the device – enable flexible portability.
Simple maintenance and reduced ongoing costs
In addition to its durable design and high reliability monitoring performance, the DF-550E provides attractive affordability. Initial set-up costs are reduced through its long-life pre-calibrated sensor technology that also comes with a 5 year warranty. The DF-550E features low ongoing device care costs through its requirement for only annual SPAN calibrations (no need to replace the programmable cell). These combined features make this device a flexible, reliable and affordable measurement solution you can depend on.
